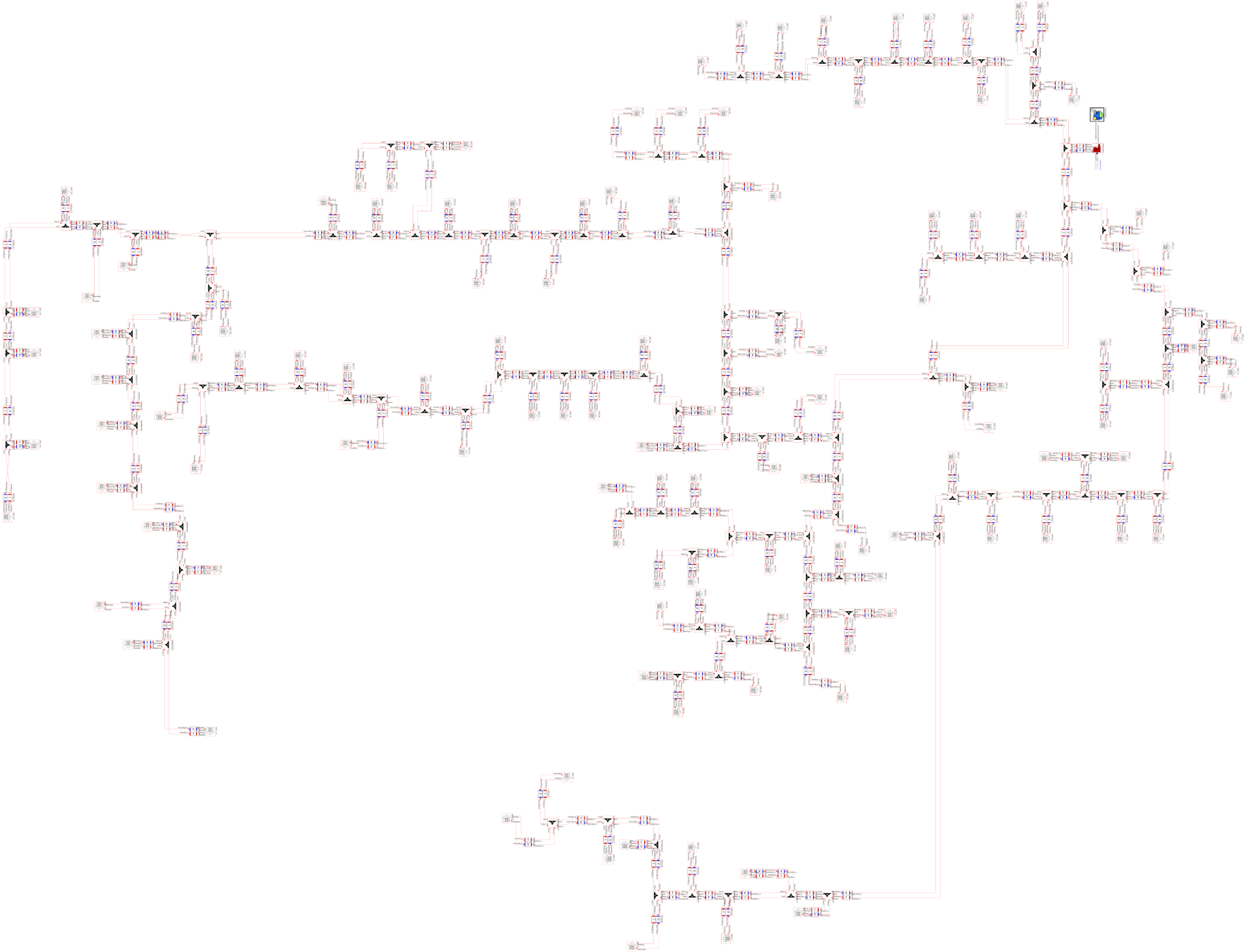

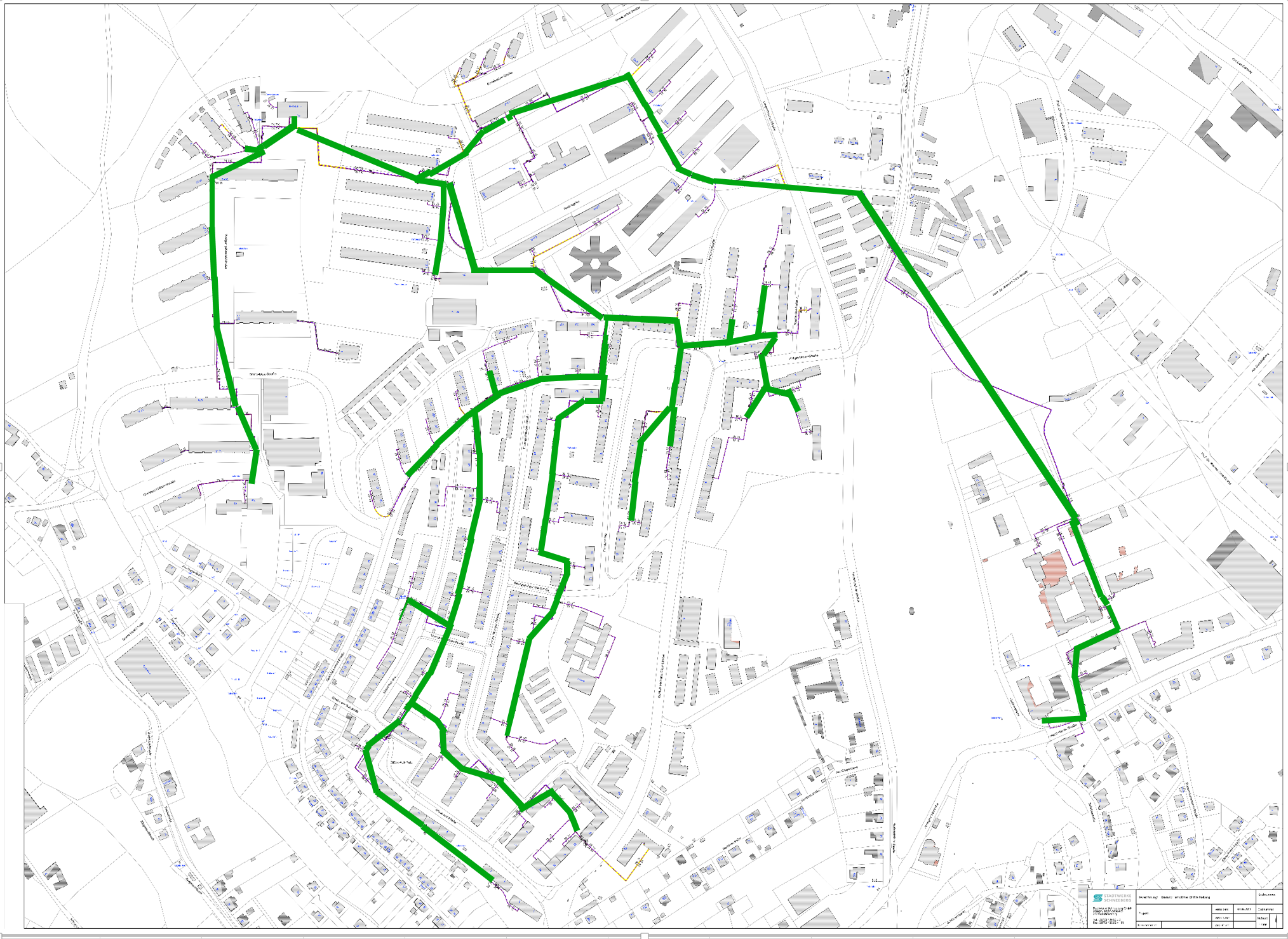

In a first step, a dynamic district heating grid model was built for the energy supplier Stadtwerke Schneeberg. The grid is a star grid without meshing and one generator location. The network has a circumference of 118 HAST and a total route length of 9.3 km. This was compared with supplied measurement data, calibrated and after successful calibration the hydraulic and thermal grid parameters for the producer, the consumer and the routes were examined.
Focus on content
- Initial model setup dynamic and static model
- grid calibration with existing measurement data
- General hydraulic and thermal grid analysis
Investigations carried out
- Parameters for circulating pumps (pressure difference, volume flow)
- Mains connection point
- dimensioning of the district heating route
